The DualAxisLinePreparer class and its associated configuration dataclass provide functionality to prepare and transform time series data for dual-axis line plotting. This module is designed to help users visualize and compare two series (typically a KPI and a feature) over time, with options for smoothing, normalization, and transformation.

Overview

This module exposes:

  • A configuration dataclass for specifying time, target, and feature columns, as well as smoothing and normalization options.

  • A preparer class that:

    • Sorts and cleans time series data

    • Applies optional transformations (adstock, difference, lag)

    • Resamples data to reduce the number of points for visualization

    • Smooths and normalizes series for better comparison

    • Generates output suitable for plotting, including SVG point strings

Class Reference

class owlmix.plotting.dual_axis_line.DualAxisLineDataConfig(time_column, target_column, feature_column, smoothing_method='rolling', window=3, normalize=True)

Dataclass for specifying dual axis line plot configuration.

Parameters:

  • time_column (str) – Name of the time column in the DataFrame.

  • target_column (str) – Name of the KPI/target column.

  • feature_column (str) – Name of the feature column to compare.

  • smoothing_method (str) – Smoothing method to use (“rolling”, “ema”, or None).

  • window (int) – Window size for smoothing.

  • normalize (bool) – Whether to normalize the series to [0, 1].

class owlmix.plotting.dual_axis_line.DualAxisLinePreparer(df, config)

Prepares time series data for dual axis line plotting.

Parameters:

  • df (pandas.DataFrame) – Input DataFrame containing time, target, and feature columns.

  • config (DualAxisLineDataConfig) – Configuration parameters for the plot.

apply_transformation(transformer_name: str, lag: int = 0) → Self

Applies a transformation (adstock, difference, lag) to the feature column.

Parameters:

  • transformer_name (str) – Name of the transformer (“adstock”, “difference”, “lag”).

  • lag (int) – Lag value for lag transformation.

Returns:

Self for method chaining.

Return type:

DualAxisLinePreparer

prepare(width: int = 300, height: int = 80, left_pad: int = 30, top_pad: int = 10) → Dict[str, Any]

Prepares the data for plotting, applying sorting, cleaning, resampling, smoothing, normalization, and output formatting.

Parameters:

  • width (int) – Width of the plot area (for SVG point calculation).

  • height (int) – Height of the plot area.

  • left_pad (int) – Left padding for the plot.

  • top_pad (int) – Top padding for the plot.

Returns:

Dictionary containing time, KPI, and feature series (raw, smoothed, normalized, min/max, SVG points).

Return type:

Dict[str, Any]

Details

The output dictionary from prepare() contains:

  • time: List of time values as strings

  • kpi: Dictionary with keys raw, smooth, normalized, min, max, points

  • feature: Dictionary with keys raw, smooth, normalized, min, max, points

Each points value is a string of SVG coordinates for plotting the normalized series.

Transformations

The following transformations are supported for the feature column:

  • Adstock: Applies adstock transformation with configurable decay.

  • Difference: Computes the difference over a specified period.

  • Lag: Shifts the series by a specified lag.

Smoothing Methods

  • Rolling: Moving average with a configurable window.

  • EMA: Exponential moving average.

  • None: No smoothing.

Sample Output

The prepared data can be used to create a dual-axis line plot where the KPI and feature series are plotted on the same time axis but with different y-axes. The smoothed and normalized series allow for better visual comparison, while the raw series can be used for reference.

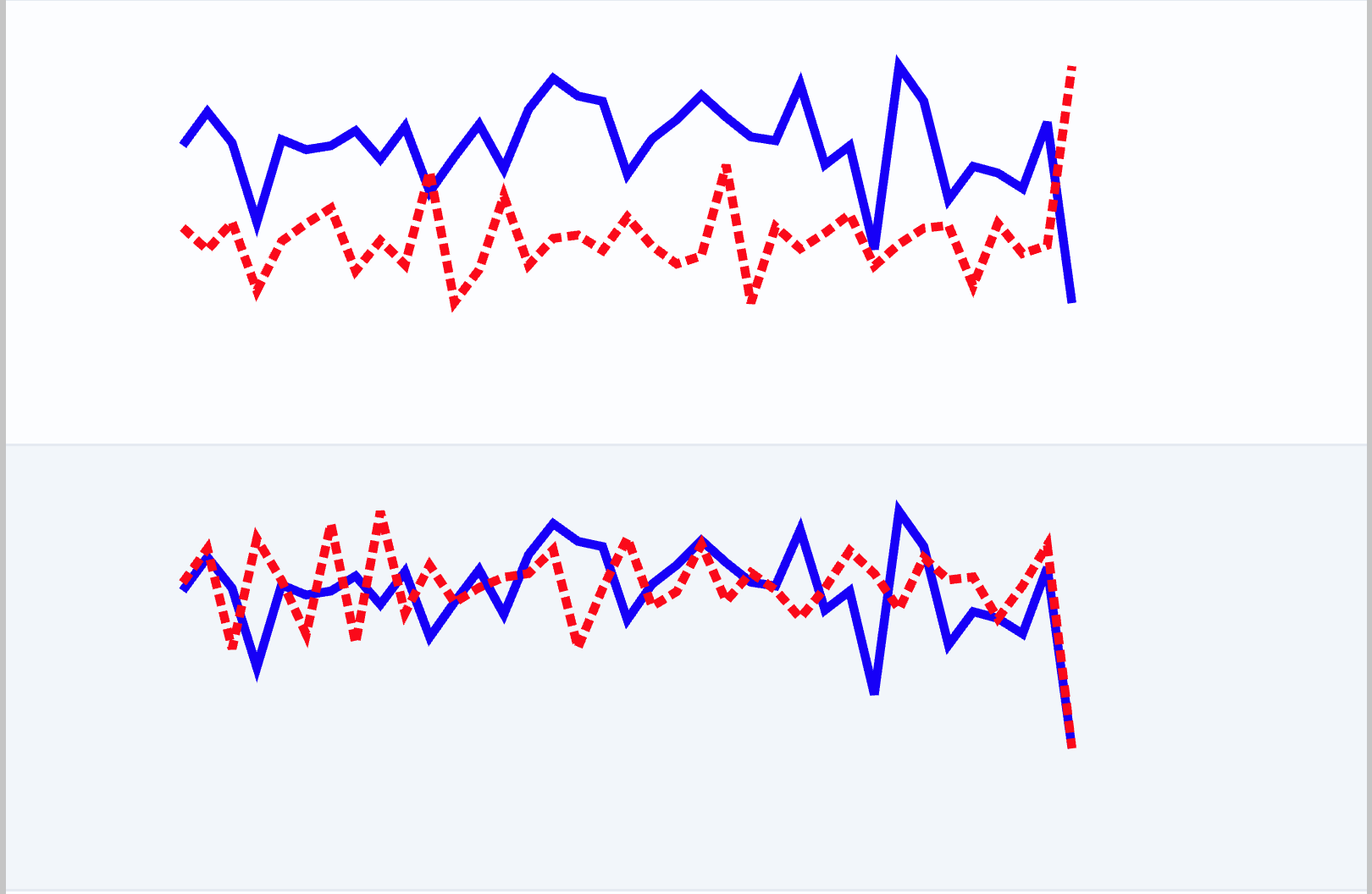

Sample Dual Axis Line Plot
